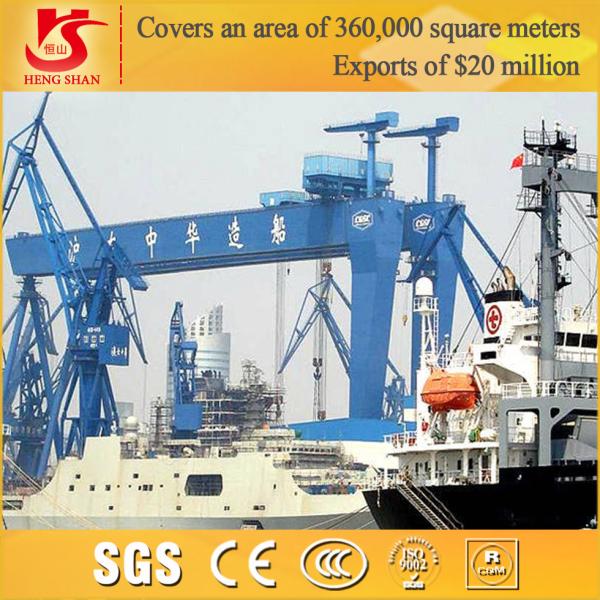

Shipbuilding Gantry Crane near sea, ship to shore crane

Ask Lasest Price
Brand Name :	Hengyuan
Model Number :	MEC Shipbuilding Crane
Certification :	CE ISO CCC
Price :	USD5000-80000 per set
Supply Ability :	100 sets per year
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

Shipbuilding Gantry Crane near sea, ship to shore crane

Product Description

design within 24 hours, 2 years warranty for crane parts-HYCRANE

Hengyuan Cranes Goliath Gantry Crane with maximum safety

One of the most important variables in the productivity of a shipyard is the size and completeness of the blocks that make up the hull. When a big hull block needs lifting, it's time for the Goliath Gantry Crane to take over.

Delivery concept

Depending on your requirements, we develop the Goliath Gantry Crane delivery concept with you. Read more about our delivery options!

Our Goliath Gantry Cranes are supplied with these advanced features:

The Hengyuan Ccranes Goliath Gantry Crane provides enormous flexibility in hook configuration, with up to 8 m hook traverse and 100% load unbalance and accuracy to a 4-millimeter tolerance.
The unique single-girder design of Goliath Gantry Cranes combines low total weight and high rigidity.

1.Product Pictures

Hycrane-One you need,All we support.

2.Product Details

Hycrane-One you need,All we support.

Shipyard cranes also manufactured in our company, you can learn more by following information.

Double Beam Gantry Crane (Goliath Crane is the most ideal material handing equipment to handle heavy loads in open yards. Difference with MG type this kind have double sets lifting mechanism,two trolleys works simultaneously or separately, this crane is suitable to lift long materials (such as wood, paper tube and bar) in factories and mines. Scientific design makes it efficient easy-handling and productive.

specification:

Lifting capacity up to 900ton
Span is 9m to 100m
Lifting height up to 100m
Working class: ISOA5-A7/FEM2M-4M
crane traveling mechanisms are operated in the driver cabin or remote control

Name & Model		Manufacturer	Remarks
Electric control mechanism:	Electric hoist Trolley control system Crane traveling control system	Schneider or Siemens brand	International Famous brands
Electric lifting hoist/trolley:	Lifting motor Traveling motor	Wuxi xindali brand	China famous material handling equipment production company
	Reducer	Jiangsu taixing reducer co.,ltd	China famous brand
	Wire rope	Jiangsu Nantong Taili Wire rope	Top-500 private enterprise in China
	Overload limiter	Changzhou Changxin	Famous trademark of China
	Stopper device Hook group	Henan Hengyuan Crane Machinery Group Co.,Ltd	China famous brand
Crane traveling mechanism:	Traveling Motor	Wuxi xindali brand	China famous material handling equipment production company
	Reducer	Jiangsu taixing reducer co.,ltd	Professional reducer supplier
	Wheel	Henan Hengyuan Crane Machinery Group Co.,Ltd	China famous brand
	Buffer	Liaoning Qingyuan	Top-500 private enterprise in China
Steel structure:	Main Girder End truck Service platform Crane Travel Rail	Anshan Steel or Handan Steel	One of the most influential enterprise in China
Steel structure:	Crane Travel Rail	Henan Hengyuan Crane Machinery Group Co.,Ltd	Hi-tech enterprise in China Top 100 of Chinese Machinery industry China famous brand

In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.

Load Capacity, ton:	(_______)
Span, S, m:	(_______)
Lift Height, H, m:	(_______)
Voltage:	(_______)
Duty Class:	(_______)
? Hours per day:	(_______)
Control way:	(_______)
Lift Speed:	(_______)
Cross & Long travel speed:	(_______)
Rail supply needed	(_______)
Power supply system needed	(_______)
Your nearest port:	(_______)

{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton}

{Tips: 6m ~40m}

{Tips: 380V, 50Hz, AC, 3-phase or please note}

{Tips: A5, A3, If you don't know, please fill the follow}

{Tips: Remote control, cabin control or pendent control }

{Tips: Single speed, double speed, or stepless speed}

{Tips: Single speed or stepless speed}

{Tips: If yes, please note the Long travel length}

{Tips: We quote CIF price need the port. FOB price please note FOB}

If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.

Looking forward your kindly inquiry and hope to help your strong business in near future!

3.Recommendable cases

Hycrane-One you need,All we support.

Project Of Shipyard Cranes

Project1:Goliath Gantry Crane

3 sets crane for Shipyard !

Load capacity:	250t-600t	(we can supply 250 ton to 600 ton,more other capacity you can learn from other project)
Span:	60m	(Standard we could supply span 60m, please contac our sales manager for more details)
Lift height:	48m-70m	(We can supply 48 m to 70 m,also we can design as your request )

	SAFETY FEATURES
	Interlock protection overload limiter stroke limiter mooring device anti-wind device

Project2:Single boom shipyard crane

3 sets crane for Shipyard !

Load capacity:	2t-20t	(we can supply 2 ton to 20ton,more other capacity you can learn from other project)
Span:	max 30m	(Standard we could supply span max 30m, please contac our sales manager for more details)
Lift height:	6m-25m	(We can supply 6 m to 25 m,also we can design as your request )

	SAFETY FEATURES
	gate switch overload limiter stroke limiter mooring device anti-wind device

Project3: Four booms shipyard crane

3 sets crane for Shipyard !

Load capacity:	5t-80t	(we can supply 5 ton to 80 ton,more other capacity you can learn from other project)
Span:	max 70m	(Standard we could supply span max 70m, please contac our sales manager for more details)
Lift height:	5m-45m	(We can supply 5 m to 45 m,also we can design as your request )

	SAFETY FEATURES
	gate switch overload limiter stroke limiter mooring device anti-wind device

Company Strength

design within 24 hours, 2 years warranty for crane parts-HYCRANE

We have a professional sales team,can privede u a quick and professional reply.
Exclusive engineer support at any time, so we can design within 24 hours.
2 year warranty for whole machines, providing all parts free of charge.
Low charge for continue maintenance when warranty is expired.
we can produce t he largest tonnage crane,just give us your demand.
We can provide free training to end-users, don't worry about the installation.
Products are sold to Europe, North America, South America, Middle East

1.Customer&Company

Hycrane-One you need,All we support.

FAQ

design within 24 hours, 2 years warranty for crane parts-HYCRANE

Thank you for your patience to read our products, our corporation, if you still have other question, can be solved through the following two ways.

1.FAQ

Hycrane-One you need,All we support.

1. What’s the information should I provide when inquiry?

More details or drawings, more better.

A: Lift capacity

B: span

C: lift height

D: power source

Or other specials you give us will be more appreciated.

2. How many operating methods for my selection?

Standard operating methods:

A: pendent controller with push buttons.

B: remote control with push buttons

C: cabin(space capsule seat) control with joystick.

Choose any type as you like.

3. Can this type work in hazardous environment?

Sure! Can customize for you, acid proof or explosion proof, no problem for that.

4. How long is your warranty?

Our warranty is 15 months after received the goods.

5. Can you provide the serious lifting tools?

Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

6. Usage period

About 30 years under common use.

7. How can we install the crane?

Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

8. Safety device

Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.
